4. Hardware
Device overview
RF Performance Specifications
Parameter |
Min |
Typical |
Max |
|---|---|---|---|
Operating Frequency |
868 / 902–928 MHz / 2.4 GHz |
||
Sensitivity |
down to −123 dBm |
||
Raw Throughput (4 x RF, excluding protocol overhead) |
4.8 Mbps @ −92 dBm |
||
Per-channel RF Output |
30 dBm @ MCS0 |
24 dBm @ MCS6 |
|
Max TX Power (sub-GHz) |
1 W EIRP |
||
Max TX Power (2.4 GHz) |
250 mW |
Electrical Specifications
Parameter |
Min |
Typical |
Max |
|---|---|---|---|
Supply Voltage Range |
5 V |
15 V |
|
Average Current – Idle |
≈ 0.8 A |
||
Power Consumption – RX |
≈ 1.3 W |
||
Power Consumption – TX |
≈ 11.3 W |
Environmental Specifications
Parameter |
Min |
Typical |
Max |
|---|---|---|---|
Operating Temperature |
−40 °C |
+85 °C |
|
Cooling |
Passive |
Mechanical Specifications
Parameter |
Value |
|---|---|

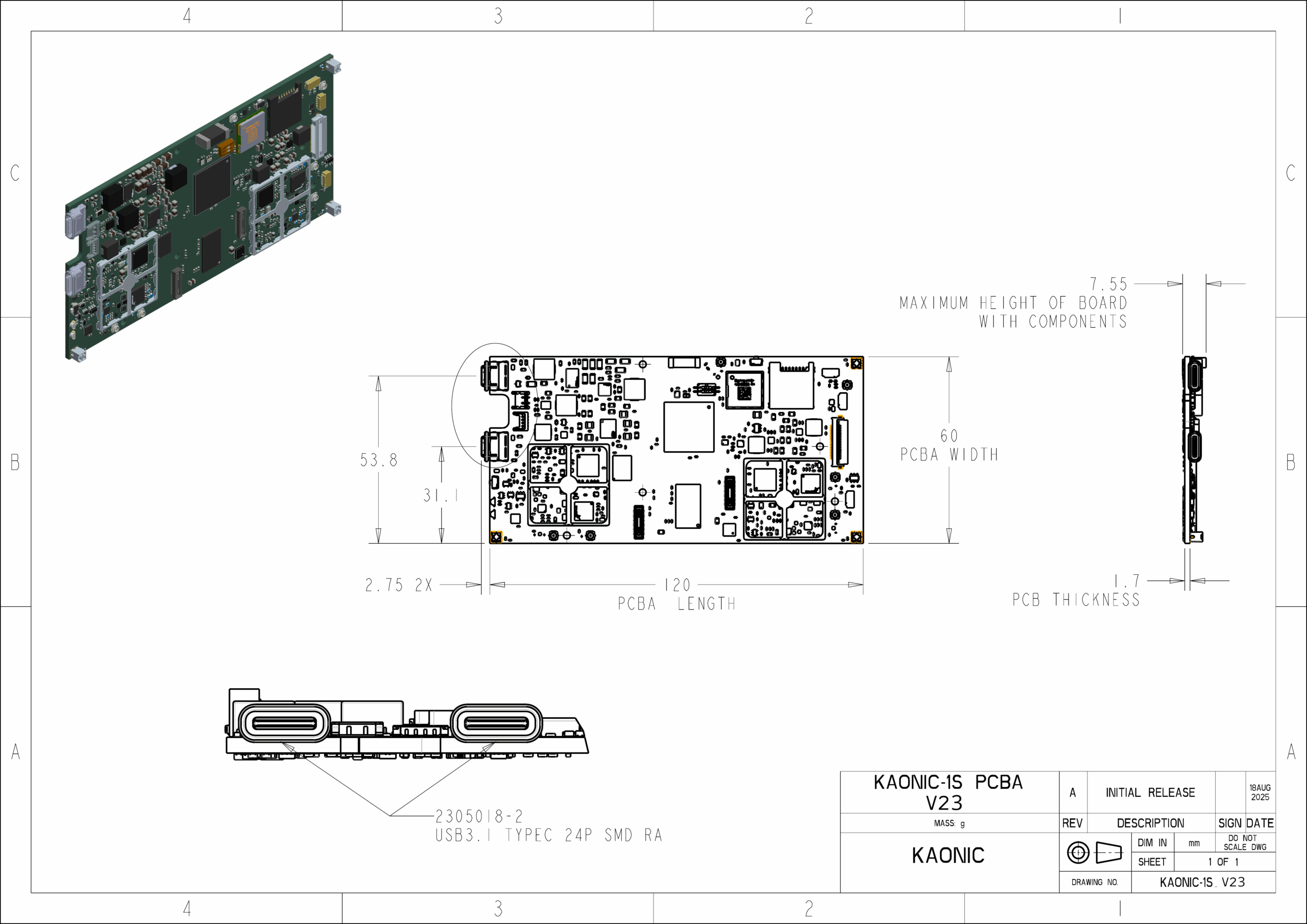

Dimensions (board only) |
120 × 60 × 7.55 mm (LxWxH) |
Weight (board only) |
84 g |

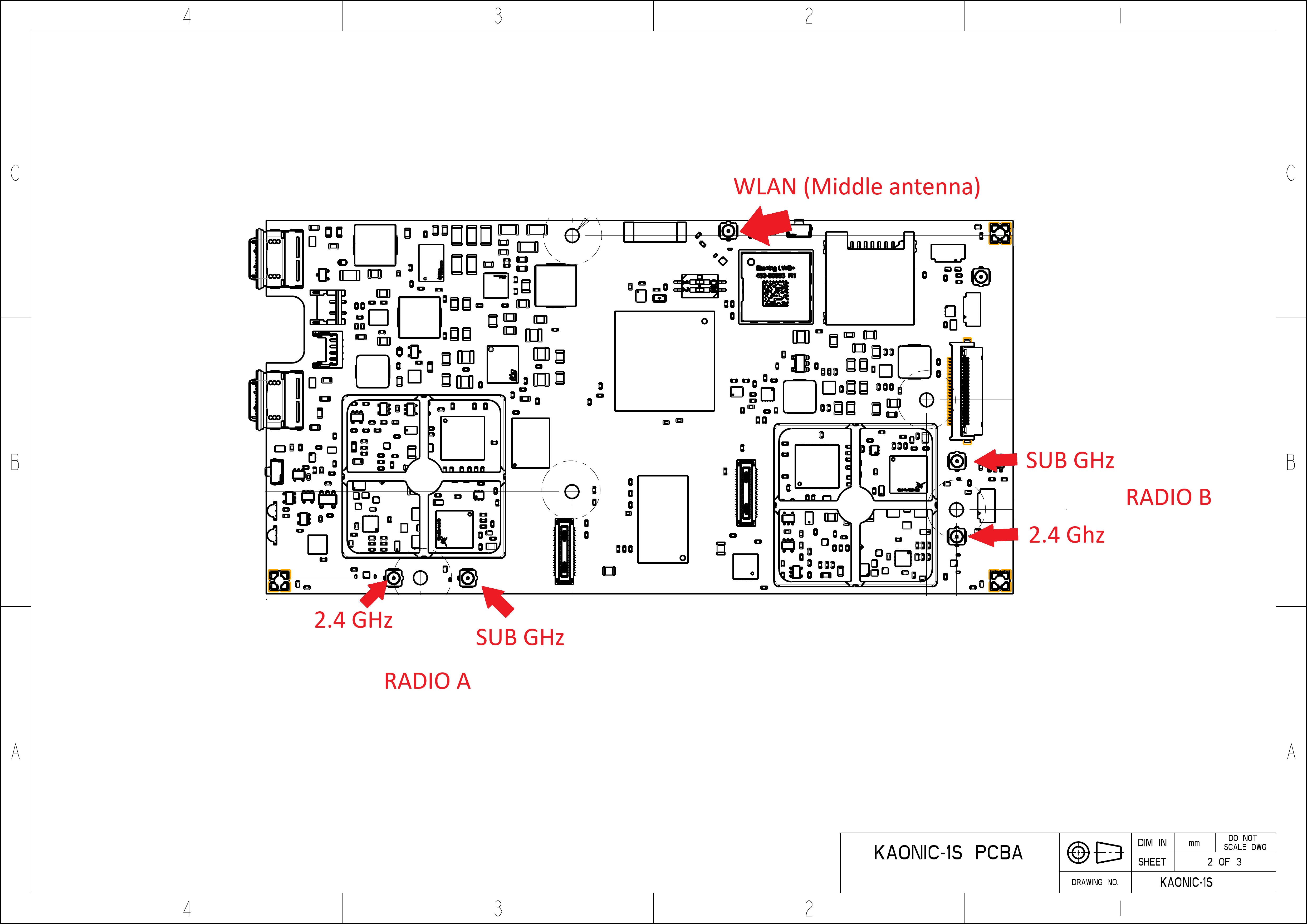

RF Connectors |
4 × u.FL (sub-GHz); integrated 2.4 GHz |
DC Connector |
Molex PICO-EZMate HC1.8 model 2082940020; mates with 2082982021 |
Pinout references
Download the pinout reference document: Pinout Reference PDF
Technical sheet
Download the technical datasheet: Technical Sheet PDF
