Mechanical and connectors¶
| Item | Value |
|---|---|
| Board only | 120 × 60 × 7.55 mm, 84 g |
| Cooling | Passive |
| Operating temperature | −40 °C to +85 °C |
Connectors¶
| Function | Notes |
|---|---|
| Sub-GHz RF | 4× u.FL on wiki; enclosed units may diplex to fewer external ports |
| 2.4 GHz | "Integrated" on wiki product photo path; OEM may expose extra u.FL |
| DC | Molex PICO-EZMate HC1.8 2082940020 / 2082982021 |
| USB-C | Power and/or USB gadget / DFU depending on straps |
Pinout: kaonic-1s-pinout-reference.pdf

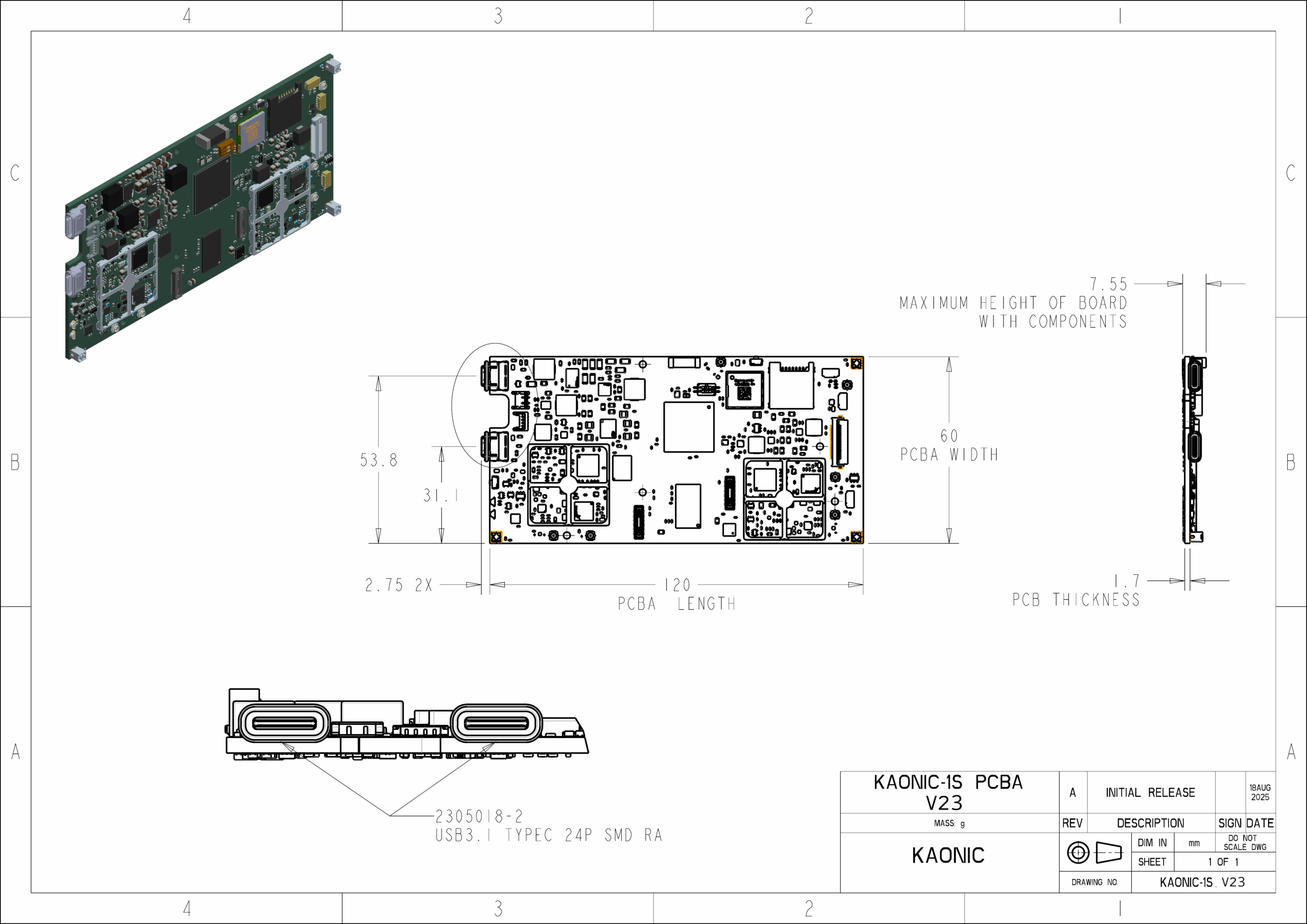

Drawing: kaonic-1s-technical-drawing.png
Interfaces and ports: kaonic-1s-connectors.jpg
